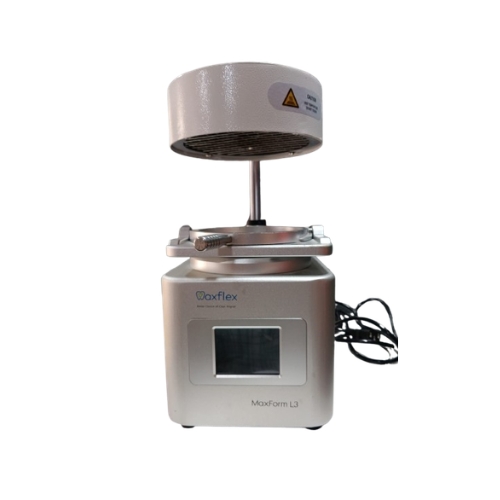

L3 Thermoforming Machine

₹120,000

L3 Thermoforming Machine

  • N/A
Product Code: L3THERM Category:

Description

  • Equipped with an imported vacuum generator and utilizing automatic negative pressure
  • technology to achieve high-efficiency film forming. Supports square and round films with thicknesses of 0.4-3.0 mm (soft or rigid), ensuring high precision and superior forming quality.
  • Applied in the forming of films for invisible aligners, sports mouthguards, retainers, and similar products.
  • Equipment Parameters
  • Input Voltage: 220V~50/60 Hz
  • Output Voltage: 24V
  • Rated Power: 800W
  • Infrared Constantheating Temperature: 220°C
  • Work Pressure: When the air source pressure greater than or equalto 0.5Mpa, the vacuum deqree is -93Kpa
  • Dimensions(Lxwxh): 260×158×318mm
  • Weight: 7.9KG
  • Membrane size: L3 is suitable for 127mm square wafers &125mm round wafers
  • L3+ is suitable for 102mm square wafers
